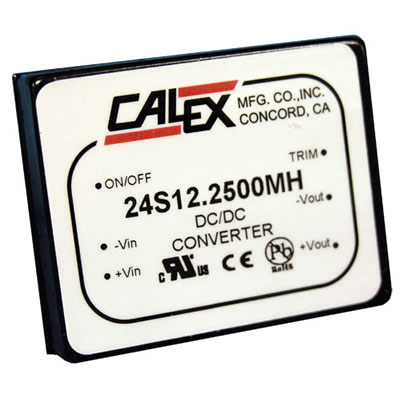

30W MH

The Calex 30 W MH series DC/DC converters in a 1.6” x 2” case with a 2:1 input ratio. The input voltage range is 18 to 36 VDC for 24 Volt battery appications and 36-75 VDC for 48V battery systems.

Download Datasheet

Request Quote

Request 3D Model

18-36 & 36-75VDC input, 30W, isolated, in a 1.6x2" package
18-36 & 36-75VDC input, 30W, isolated, in a 1.6×2″ package


24S5.6000MH
30
18-36
5.0
6.0
1544
PCB Mount
1.6 x 2 x 0.42
Single Output

24S12.2500MH
30
18-36
12.0
2.5
1544
PCB Mount
1.6 x 2 x 0.42
Single Output

24S15.2000MH
30
18-36
15.0
2.0
1544
PCB Mount
1.6 x 2 x 0.42
Single Output

24S24.1250MH
30
18-36
24.0
1.3
1544
PCB Mount
1.6 x 2 x 0.42
Single Output

48S5.6000MH
30
36-75
5.0
6.0
1544
PCB Mount
1.6 x 2 x 0.42
Single Output

48S12.2500MH
30
36-75
12.0
2.5
1544
PCB Mount
1.6 x 2 x 0.42
Single Output

48S15.2000MH
30
36-75
15.0
2.0
1544
PCB Mount
1.6 x 2 x 0.42
Single Output

48S24.1250MH
30
36-75
24.0
1.3
1544
PCB Mount
1.6 x 2 x 0.42
Single Output
