3000W BCH Bi-directional DC/DC Converter

The 3,000-Watt BCH series of Bi-directional non-isolated DC/DC converters have an IP6k9K rating. The series provides a complete solution for ruggedized e-Mobility power distribution with 48V/12V, 48V/24V, & 24V/12V battery configurations for a variety of applications including micro and mild hybrid e-Mobility systems.

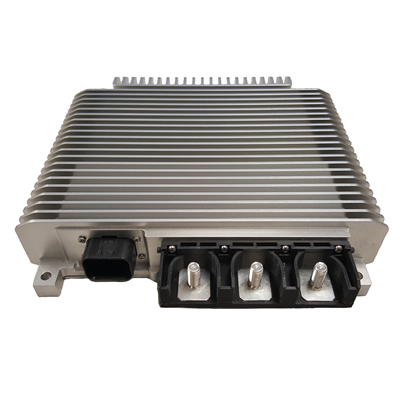

3,000-Watt BCH series of Bi-directional non-isolated DC/DC converters

PART NUMBER

POWER (WATTS)

INPUT RANGE (VDC)

OUTPUT VOLTAGE (VDC)

OUTPUT CURRENT (ADC)

ISOLATION VOLTAGE (VDC)

MOUNTING TYPE

CASE DIMENSIONS

OUTPUT TYPE

PART NUMBER

24S12.215BCH-A

POWER (WATTS)

3000

INPUT RANGE (VDC)

36-60

OUTPUT VOLTAGE (VDC)

9-16

OUTPUT CURRENT (ADC)

215

ISOLATION VOLTAGE (VDC)

N/A

MOUNTING TYPE

Chassis Mount

CASE DIMENSIONS

10.37 x 9.93 x 2.05

OUTPUT TYPE

Bi-directional

Download Short-Form Datasheet

PART NUMBER

24S12.107BCH-A

POWER (WATTS)

3000

INPUT RANGE (VDC)

24-60

OUTPUT VOLTAGE (VDC)

9-16

OUTPUT CURRENT (ADC)

215

ISOLATION VOLTAGE (VDC)

N/A

MOUNTING TYPE

Chassis Mount

CASE DIMENSIONS

10.37 x 9.93 x 2.05

OUTPUT TYPE

Bi-directional

Download Short-Form Datasheet
