600W IHC AC-DC Power Supply

The 600-Watt IHC is a new series of AC-DC harsh environment industrial power supplies. The IHC series is aimed at ruggedized and special applications that require operation in extreme industrial environmental conditions. The product enclosure is an IP66 sealed convection/conduction cooled assembly that can be baseplate mounted to a thermal (cold) plate or natural convection cooled.

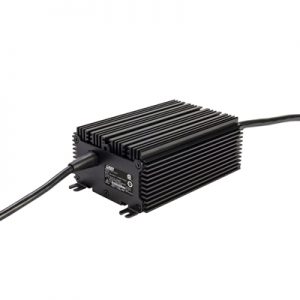

300W CEV AC-DC
Charger

The CEV series of ruggedized IP67 rated enclosure (sealed) convection cooled AC-DC battery chargers are intended for harsh environment deployments and provide a single regulated Constant Voltage (CV) or Constant Current (CC) mode output, designed for use as a battery charger/current source for battery packs.

250 Watt LHC AC-DC
Power Supply

250 Watt LHC AC-DC Power Supply

The LHC is a series of ruggedized IP67 (sealed enclosure) convection cooled 250 watt AC-DC power modules intended for harsh environment deployments and provide a single regulated Constant Voltage (CV) or Constant Current (CC) mode output designed as voltage sources for general industrial applications.

75W HD Dual Output DC-DC Converter

18-36VDC input, 75W, Dual output, isolated Half Brick

Both outputs of the HD are rated for a maximum of 10 Amps, thus providing many possible output load combinations with a total output power of 75 Watts. Threaded through holes allow for easy mounting or the addition of a heat sink.

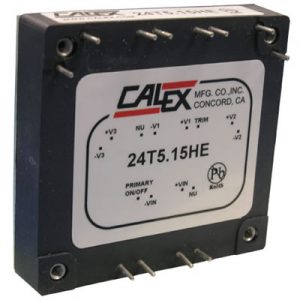

75W HE Triple Output DC-DC Converter

18-36 & 36-75VDC input, 75W, Triple Output Half Brick

The 2:1 Input Voltage 75 W HE Triple Series of DC/DC converters provide precisely regulated dc outputs in a Half Brick package

75W LT Triple Output DC-DC Converter

18-36VDC input, 75W, Triple ouput Half Brick

The 2:1 Input Voltage 75 W LT Triple Series of DC/DC converters provide precisely regulated dc outputs in a Half Brick package.

75W QH DC-DC Converter

18-36 & 36-75VDC input, 75W, isolated Quarter Brick

The 75 Watt single QH series of DC/DC Converters provide precisely regulated dc outputs. All outputs are fully isolated from the inputs, allowing the output to be used with positive or negative polarity and various grounding options.

50W SBM Series DC-DC Converter

Optimized for harsh environments in industrial/railway applications, the 50W SBM DC-DC converter series offers regulated outputs in an industry-standard sixteenth-brick (1.04″ x 1.44″ x 0.5″) fully encased package.

30W MHW DC-DC Converter

9-36 & 18-75VDC input, 30W, isolated, in a 1.6x2" package

The Calex 30 W MHW series DC/DC converters in a 1.6” x 2” case with a 4:1 input ratio. The input voltage range is 9 to 36 VDC for 12 and 24 Volt battery appications and 18-75 VDC for 48V battery systems.

20W HP Triple Output DC-DC Converter

2:1 input range, 20 W Triple output DC/DC in a metal case

The Calex 20W HP DC/DC Triple converter is housed in a metal case. The HP series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

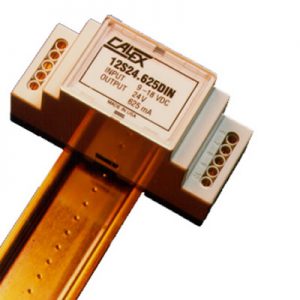

15W DIN DC-DC Converter

9-18VDC input, 15W, isolated, DIN Rail Mount DC/DC

The Calex 15W Din Rail Mount DC/DC converter is housed in a plastic Din Rail mountable case. The input voltage range is 9 to 18VDC for 12 Volt battery appications.

15W BR DC-DC Converter

9-36 & 18-75VDC input, 30W, isolated, in a 1.6x2" package

The Calex 15W BR series DC/DC converters in a 1” x 2” case with a 4:1 input ratio. The input voltage range is 9 to 36 VDC for 12 and 24 Volt battery appications and 18-75 VDC for 48V battery systems.

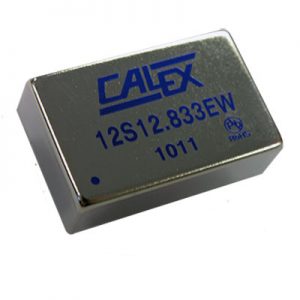

10W EW DC-DC Converter

2:1 input range, 10 W isolated DC/DC in a metal DIP case

The Calex 10W EW DC/DC converter is housed in a metal DIP case. The EW series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

10W EW Dual Output DC-DC Converter

2:1 input range, 10 W Dual DC/DC in a metal DIP case

The Calex 10W EW DC/DC Dual converter is housed in a metal DIP case. The EW series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

6W HW Dual Output
DC-DC Converter

2:1 input range, 6W Dual DC/DC in a plastic DIP case

The Calex 6W HW Dual DC/DC converter is housed in a plastic DIP case. The HW series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

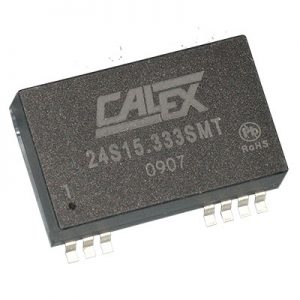

5W SMT DC-DC Converter

2:1 input range, 5 W isolated surface mount DC/DC

The Calex 5W SMT DC/DC converter is housed in a plastic Surface Mount case. The SMT series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

5W SMT Dual Output DC-DC Converter

2:1 input range, 5 W Dual surface mount DC/DC

The Calex 5W Dual SMT DC/DC converter is housed in a plastic Surface Mount case. The SMT series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

5W HW

2:1 input range, 5 W isolated DC/DC in a plastic DIP case

The Calex 5W HW DC/DC converter is housed in a plastic DIP case. The HW series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

3W SMT DC-DC Converter

2:1 input range, 3 W isolated surface mount DC/DC

The Calex 3W SMT DC/DC converter is housed in a plastic Surface Mount case. The SMT series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

3W LCS DC-DC Converter

2:1 input range, 3 W isolated DIP DC/DC

The Calex 3W LCS DC/DC converter is housed in a plastic DIP case. The LCS series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

3W SMT Dual Output DC-DC Converter

2:1 input range, 3 W Dual surface mount DC/DC

The Calex 3W Dual SMT DC/DC converter is housed in a plastic Surface Mount case. The SMT series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

1W SMT DC-DC Converter

10% input range, 1 W isolated surface mount DC/DC

The Calex 1W SMT DC/DC converter is housed in a plastic Surface Mount case. The SMT series has an input range of 4.5 to 5.5VDC and 10.8 to 13.2VDC.

1W SMT Dual Output

2:1 input range, 1W Dual surface mount DC/DC

The Calex 1W Dual SMT DC/DC converter is housed in a plastic Surface Mount case. The SMT series has an input range of 2:1 for input voltages of 12, 24, and 48VDC.

60 Watt PC-60 Series
Single Output

The 60 Watt PC-60 Series Single Output has efficiencies up to 84%, input range 85-265 VAC, 3000VAC isolation, short circuit protection, over voltage protection, MTBF > 125,000 hours, RoHS compliant and is UL60950 approved.

60 Watt PK-60 Series
Single Output

The 60 Watt PK-60 Series Single Output has efficiencies up to 84%, universal input range 85-265 VAC, 3000VAC isolation, short circuit protection, over voltage protection, MTBF > 125,000 Hours, UL60950 approved, and is RoHS Compliant.

30 Watt PC-30 Series Single, Dual and Triple Output

The 30 Watt PC-30 Series Single, Dual and Triple Output has efficiencies up to 80%, universal input range 85-265 VAC, 3000VAC isolation, short circuit protection, over voltage protection, MTBF > 250,000 hours, UL60950 approved, and is RoHS Compliant.

30 Watt PK-30 Series Single, Dual and Triple Output

The 30 Watt PK-30 Series Single, Dual and Triple Output has efficiency up to 76%, universal input range 85-264 VAC, 3000VAC isolation, short circuit protection, over voltage protection, class II protection, MTBF > 300,000 hours, US60950 approved, RoHS compliant.

15 Watt PC-15 Series Single, Dual and Triple Output

The 15 Watt PC-15 Series Single, Dual and Triple Output has efficiencies up to 76%, universal input range 85-264 VAC, 3000VAC Isolation, short circuit protection, over Voltage protection, class II protection, MTBF > 280,000 hours, US60950 approved, and is RoHS compliant.

15 Watt PK-15 Series Single, Dual and Triple Output

The 15 Watt PK-15 Series Single, Dual and Triple Output has efficiencies up to 79%, universal input range 85-264 VAC, 3000VAC isolation, short circuit protection, over voltage protection, class II protection, MTBF > 280,000 hours, US60950 approved, and is RoHS compliant.

10 Watt PK-10 Series
Single and Dual Output

The 10 Watt PK-10 Series Single and Dual Output has efficiencies up to 77%, universal input range 85-264 VAC, 3000VAC isolation, short circuit protection, over voltage protection, class II protection, MTBF > 300,000 hours, UL60950 approved, and is RoHS Compliant.

10 Watt PL-10 Series
Single Output

The 10 Watt PL-10 Series Single Output has efficiencies up to 76%, universal input range 85-264 VAC, 3000VAC isolation, short circuit protection, over voltage protection, class II protection, MTBF > 300,000 hours, US60950 approved, and is RoHS compliant.

7 Watt PK-7 Series Single Output

The 7 Watt PK-7 Series Single Output has efficiencies up to 78%, universal input range 85-264 VAC, 3000VAC isolation, short circuit protection, over voltage protection, class II protection, MTBF > 330,000 hours, UL60950 approved, and is RoHS compliant.

4 Watt PK-4 Series Single and Dual Output

The 4 Watt PK-4 Series Single and Dual Output has efficiencies up to 77%, universal input range 85-64 VAC, 3000VAC isolation, short circuit protection, over load & over voltage protection, MTBF > 300,000 hours, UL60950 approved, and is RoHS compliant.

2 Watt PK-2 Series Single and Dual Output

The 2 Watt PK-2 Series Single and Dual Output has efficiencies up to 76%, universal input range 85-264 VAC, 3000VAC isolation, short circuit protection, MTBF > 500,000 hours, UL60950 approved, and is RoHS compliant.

75 Watt RQS Single Series

The 75 Watt RQS Single Series is designed specifically for railway applications, input voltages of 72 (43-101)VDC or 110 (66-160)VDC, efficiency up to 92%, 3000VACrms isolation, MTBF > 143,800 hours, overload protection, over temperature protection, under voltage shutdown, remote on/off, optional heatsink, and is RoHS compliant.

60 Watt DRS Series

The 60 Watt DRS Series has efficiencies up to 92%, 4:1 input range, fully regulated output voltage, 2500VDC isolation, short circuit protection, over voltage protection, remote on/off, UL60950 approved, and is RoHS compliant.

50 Watt RQF Single Series

The 50 Watt RQF Single Series is designed specifically for railway applications, input voltages of 72 (43-101)VDC or 110 (66-160)VDC, efficiency up to 92%, 3000VACrms isolation, MTBF > 314,800 hours, overload protection, over temperature protection, under voltage shutdown, remote on/off, optional heatsink, and is RoHS compliant.

50 Watt TMX Single Series

50 Watt TMX Single Series has efficiency up to 92%, 1500VDC isolation, 4:1 wide input, over voltage protection, short circuit protection, over voltage shutdown, six sided shielding, remote on/off control, and is RoHS compliant.

50 Watt TML Single Series

The 50 Watt TML Single Series has Efficiencies up to 92%, 1500VDC isolation, MTBF > 227,000 hours, 2:1 input, over voltage protection, short circuit protection, six sided shielding, remote on/off control, and is RoHS compliant.

40 Watt DRF Series

The 40 Watt DRF Series has efficiencies up to 92%, 4:1 input range, fully regulated output voltage, 2500VDC isolation, short circuit protection, over voltage protection, remote on/off, UL60950 approved, and is RoHS compliant.

40 Watt TMF Single and Dual Series

The 40 Watt TMF Single and Dual Series is efficiencies up to 91%, 1500VDC isolation, MTBF > 328,000 hours, 4:1 wide input, over voltage protection, short circuit protection, six sided shielding, remote on/off control, RoHS compliant, and is CSA/UL approved.

40 Watt TMH Single and Dual Series

The 40 Watt TMH Single and Dual Series has efficiencies up to 92%, 1500VDC isolation, MTBF > 328,000 hours, 2:1 wide input, over voltage protection, short circuit protection, six sided shielding, remote on/off control, RoHS compliant, and is CSA 60950 approved.

25-30 Watt KMW Single and Dual Series

The 25-30 Watt KMW Single and Dual Series has efficiencies up to 89%, 1500VDC isolation, MTBF > 1,000,000 hours, 4:1 input, six-sided shielding, remote on/off, output trim, UL60950 approved, and is RoHS compliant.

25-30 Watt KMS Single
and Dual Series

The 25-30 Watt KMS Single and Dual Series has efficiencies up to 89%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input, six-sided shielding, over voltage protection, remote on/off, output trim, CSA approved, and is RoHS compliant.

25 Watt QMZ Single and Dual Series

The 25 Watt QMZ Single and Dual Series has efficiencies up to 90%, 1500 VDC isolation, 4:1 ultra wide input range, remote on/off control, no minimum load requirement, six sided shielding, trim, RoHS compliant, and is CSA approved.

20W QMJ Single and Dual Series

The 20 Watt QMJ Single and Dual Series has efficiencies up to 90%, 1500 VDC isolation, over voltage protection, 4:1 ultra wide input range, remote on/off control, optional heatsink, RoHS compliant, and is CSA approved.

25 Watt QMS Single and Dual Series

The 25 Watt QMS Single and Dual Series has efficiencies up to 90%, 1500 VDC isolation, 2:1 ultra wide input range, remote on/off control, six sided shielding, trim, RoHS compliant, and is CSA approved.

20 Watt TMZ Single and Dual Series

The 20 Watt TMZ Single and Dual Series has efficiencies up to 89%, 1500VDC isolation, MTBF > 800,000 hours, 2:1 input, six-sided shielding, over voltage protection, remote on/off, CSA60950 approved, and is RoHS compliant.

20 Watt RQT Single Series

The 20 Watt RQT Single Series is designed specifically for railway applications, input voltages of 24 (9-36)VDC, 48(18-75)VDC or 110 (40-160)VDC, efficiency up to 88%, 2250VDC isolation, overload protection, short circuit protection, over voltage protection, remote on/off, voltage trim, optional heatsink, and is RoHS compliant.

20 Watt DRT Series

The 20 Watt DRT Series is efficiency up to 91%, 4:1 input range, fully regulated output voltage, 2500VDC isolation, short circuit protection, over voltage protection, remote on/off, UL60950 approved, and is RoHS compliant.

15 Watt TMS Single and Dual Series

The 15 Watt TMS Single and Dual Series has efficiencies up to 86%, 1500VDC isolation, MTBF > 700,000 hours, 4:1 input, six-sided shielding, UL60950 approved, and is RoHS compliant.

12 Watt TMK Single and Dual Series

The 12 Watt TMK Single and Dual Series has efficiencies up to 84%, 1500VDC isolation, MTBF > 700,000 hours, 4:1 input, over voltage protection, short circuit protection, six-sided shielding, UL60950 approved, and is RoHS compliant.

10 Watt QMH Single and Dual Series

The 10 Watt QMH Single and Dual Series has efficiencies up to 87%, 1500 VDC isolation, single output up to 4.5A, 4:1 ultra wide input range, remote on/off control, six sided shielding, and is RoHS compliant.

10 Watt TMR Single and Dual Series

The 10 Watt TMR Single and Dual Series has efficiencies up to 82%, 4200VAC isolation, MTBF > 1M hours, 2:1 wide input, over voltage protection, short circuit protection, and is RoHS compliant.

10 Watt TMD Single and Dual Series

The 10 Watt TMD Single and Dual Series has efficiencies up to 83%, 1500VDC isolation, MTBF > 700,000 hours, 2:1 Input, six-sided shielding, UL60950 approved, and is RoHS compliant.

10 Watt RQH Single Series

The 10 Watt RQH Single Series is designed specifically for railway applications, input voltages of 24 (9-36)VDC, 48(18-75)VDC or 110 (40-160)VDC, efficiency up to 88%, 2250VDC isolation, overload protection, short circuit protection, over voltage protection, remote on/off, voltage trim, optional heatsink, and is RoHS compliant.

10 Watt DMT Single and Dual Series

The 10 Watt DMT Single and Dual Series has efficiencies up to 87%, 1500VDC isolation, MTBF > 1,000,000 hours, 4:1 input range, over voltage protection, remote on/off, CSA approved, and is RoHS compliant.

10 Watt DMS Single and Dual Series

The 10 Watt DMS Single and Dual Series has efficiencies up to 88%, 1500VDC isolation, MTBF > 1,000,000 Hours, 2:1 input range, over voltage protection, CSA60950 approved, and is RoHS compliant.

6 Watt DPZ Single and
Dual Series

The 6 Watt DPZ Single and Dual Series has efficiencies up to 84%, 3000VDC isolation, MTBF > 1,000,000 Hours, 4:1 input range, and is RoHS compliant.

5-6 Watt DMF Single and Dual Series

The 5-6 Watt DMF Single and Dual Series has efficiencies up to 83%, 1500VDC Isolation, MTBF > 800,000 hours, 4:1 input range, CSA60950 approved, and is RoHS compliant.

5-6 Watt DMR Single and Dual Series

The 5-6 Watt DMR Single and Dual Series has efficiencies up to 86%, 1500VDC isolation, MTBF > 1,000,000 hours, 4:1 input range, CSA60950 approved, and is RoHS compliant.

5-6 Watt DPJ Single and Dual Series

The 5-6 Watt DPJ Single and Dual Series has efficiency up to 86%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input range, short circuit protection, CSA60950 approved, and is RoHS compliant.

5-6 Watt DMJ Single and Dual Series

The 5-6 Watt DMJ Single and Dual Series has efficiencies up to 86%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input range, CSA60950 approved, and is RoHS compliant.

5-6 Watt DPL Single and Dual Series

The 5-6 Watt DPL Single and Dual Series has efficiencies up to 80%, 4000 VAC isolation, 5600 VDC isolation, MTBF > 700,000 hours, 2:1 input range, low leakage current, low isolation capacitance, UL60950 and UL60601 approved, and is RoHS compliant.

5 Watt SMW Single and Dual Series

The 5 Watt SMW Single and Dual Series has efficiencies up to 83%, 1500VDC isolation, MTBF > 1,000,000 hours, 4:1 input, short circuit protection, remote on/off, and is RoHS compliant.

5 Watt SMZ Single and
Dual Series

The 5 Watt SMZ Single and Dual Series has efficiencies up to 85%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input, short circuit protection, remote on/off, CSA60950 approved, and is RoHS compliant.

5 Watt SPJ Single and
Dual Series

The 5 Watt SPJ Single and Dual Series has efficiency up to 84%, 1500VDC isolation, MTBF > 2,400,000 hours, no minimum load required, remote on/off, RoHS compliant, and is CSA approved.

3-4 Watt DMC Single and Dual Series

The 3-4 Watt DMC Single and Dual Series has efficiencies up to 85%, 1500VDC isolation, MTBF > 1,000,000 hours, 4:1 input range, UL60950 approved, and is RoHS compliant.

3 Watt SMU Single and
Dual Series

The 3 Watt SMU Single and Dual Series has efficiency up to 80%, 1500VDC isolation, 4:1 input range, remote on/off, and is RoHS compliant.

3 Watt DPV Single and
Dual Series

The 3 Watt DPV Single and Dual Series has 3000VAC isolation, MTBF > 1,000,000 hours, regulated outputs, low leakage current, short circuit protection and is RoHS compliant.

3 Watt SPQ Single and
Dual Series

The 3 Watt SPQ Single and Dual Series has efficiencies up to 81%, 1600VDC isolation, 4:1 input range, MTBF > 800,000 hours, remote on/off, regulated output, and is RoHS compliant.

3 Watt DPX Single and
Dual Series

The 3 Watt DPX Single and Dual Series has efficiencies up to 84%, 3000VDC isolation, MTBF > 1,000,000 hours, 4:1 input range, no minimum load required, overload protection. short circuit protection, CSA approved, and is RoHS compliant.

3 Watt DPU Single and
Dual Series

The 3 Watt DPU Single and Dual Series has efficiencies up to 80%, 1500VDC isolation, 4:1 input range, remote on/off, and is RoHS compliant.

3 Watt SMS Single and
Dual Series

The 3 Watt SMS Single and Dual Series has efficiencies up to 83%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input range, short circuit protection, UL60950 approved, and is RoHS compliant.

3 Watt DPS Single and
Dual Series

The 3 Watt DPS Single and Dual Series has efficiencies up to 81%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input range, short circuit protection, UL60950 approved, and is RoHS compliant.

3 Watt SPS Single and
Dual Series

The 3 Watt SPS Single and Dual Series has efficiencies up to 83%, 1600VDC isolation, MTBF > 1,000,000 hours, remote on/off, and is RoHS compliant.

2-3 Watt DPF Single and Dual Series

The 2-3 Watt DPF Single and Dual Series has efficiencies up to 84%, 1500VDC isolation, MTBF > 1,000,000 hours, 4:1 input range, short circuit protection, CSA 60950 approved, and is RoHS compliant.

2-3 Watt DPA Single Series

The 2-3 Watt DPA Single Series has efficiencies up to 84%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input range, UL60950 approved, and is RoHS compliant.

2 Watt SMP Single and
Dual Series

The 2 Watt SMP Single and Dual Series has efficiencies up to 75%, 4000VAC isolation, MTBF > 2,000,000 hours, UL 60950 and UL60601 approved, and is RoHS compliant.

2 Watt DPT Single and
Dual Series

The 2 Watt DPT Single and Dual Series has 6000VDC isolation, MTBF > 600,000 hours, regulated outputs, low isolation capacitance, low leakage current, short circuit protection, and is RoHS compliant.

2 Watt SMN Single and
Dual Series

The 2 Watt SMN Single and Dual Series has efficiencies up to 81%, 1500VDC isolation, 2:1 input range, MTBF > 1,000,000 hours, low ripple and noise, CSA approved, and is RoHS compliant.

2 Watt DPW Single Series

The 2 Watt DPW Single Series has efficiencies up to 81%, 1500VDC isolation, MTBF > 1,000,000 hours, 2:1 input range, short circuit protection, CSA60950 approved, and is RoHS compliant.

2 Watt SPL Single and
Dual Series

The 2 Watt SPL Single and Dual Series has efficiencies up to 82%, 1500VDC isolation, MTBF > 1,000,000 hours, remote on/off, and is RoHS compliant.

2 Watt DPN Single and
Dual Series

2 Watt DPN Single and Dual Series has Efficiency up to 75%, 4000VAC Isolation, MTBF > 2,000,000 Hours, Low Leakage Current, UL60950 and UL60601 Approved, and is RoHS Compliant

2 Watt SPR Single Series

The 2 Watt SPR Single Series has efficiencies up to 81%, 1000VDC isolation, MTBF > 1,000,000 hours, remote on/off, low ripple and noise, and is RoHS compliant.

2 Watt SPK Single and
Dual Series

The 2 Watt SPK Single and Dual Series has efficiencies up to 83%, 1000VDC isolation, MTBF > 2,000,000 hours, mini SIP package, and RoHS compliant.

1 Watt SMJ Single and
Dual Series

The 1 Watt SMJ Single and Dual Series has efficiencies up to 80%, 1500VDC isolation, MTBF > 2,000,000 hours, and is RoHS compliant.

SMA 1 Watt SMA Single Series

The SMA 1 Watt SMA Single Series has efficiencies up to 82%, 1000VDC isolation, MTBF > 2,000,000 hours, and is RoHS compliant.

1 Watt SPB Single and
Dual Series

The 1 Watt SPB Single and Dual Series has compact SIP-6 packaging, efficiency up to 80%, 1500VDC isolation, MTBF > 2,800,000 hours, and is RoHS compliant.

1 Watt SPX Single and
Dual Series

The 1 Watt SPX Single and Dual Series has efficiencies up to 88%, 1000VDC isolation, MTBF > 2,000,000 hours, and is RoHS compliant.

1 Watt SPV Single Series

The 1 Watt SPV Single Series has efficiencies up to 88%, 3000VDC isolation, low ripple & noise, MTBF > 2,000,000 hours, and is RoHS compliant.

1 Watt SPM Single and
Dual Series

The 1 Watt SPM Single and Dual Series has efficiencies up to 75%, 3000 VAC isolation, MTBF > 2,000,000 hours, UL60950 & UL60601 approved, and is RoHS compliant.

1 Watt SPF Single and
Dual Series

The 1 Watt SPF Single and Dual Series has efficiencies up to 81%, 3000VDC isolation, MTBF > 2,000,000 hours, and is RoHS compliant.

1 Watt SPH Single and
Dual Series

1 Watt SPH Single and Dual Series has efficiency up to 81%, 1000VDC isolation, MTBF > 2,000,000 hours, and is RoHS compliant.

240W LPE DC-DC Converter

The “On-Board” DC/DC Converter is a ruggedized DC-DC power module intended to be permanently installed “on board” a mobile battery system application. The converter module is designed to operate from a 48Vdc (nominal) motive power battery source and provide a 12Vdc (nominal) output (at 20Adc) for power system control electronics. Optimized for harsh environments that require battery-operated systems.

3000W BCA Bi-directional DC-DC Converter

BCA Series 3000 Watt bi-directional non-isolated DC/DC Converter for 12V/48V battery configurations

The 3,000 Watt 48S12.3K0BCA Bi-directional non-isolated DC/DC converter provides a complete solution for in-vehicle power distribution with 12V/48V battery configurations for a variety of applications including micro and mild hybrid automotive systems.

2100W MBH DC-DC Converter

The 2,100 Watt MBH series is designed for ground mobile battery applications using a 10-16 VDC input range. The converter provides a highly regulated 28 VDC output on a ruggedized chassis mount platform.

1000W FX Series DC-DC Converter

9-36 VDC input, 1 kW, isolated Full Brick designed to be operated in parallel

The 4:1 Input Voltage 1000 Watt FXW DC/DC Full Brick converter provides a precisely regulated dc output. The output voltage is fully isolated from the input, allowing the output to be positive or negative polarity and with various ground connections

500W MXW DC-DC Converter

The 4:1 Input Voltage 500 Watt MXW DC/DC Half Brick converter provides a precisely regulated dc output. The output voltage is fully isolated from the input, allowing the output to be positive or negative polarity and with various ground connections.

360W MLW DC-DC Converter

The 4:1 Input Voltage 360 Watt Single MLW DC/DC converter provides a precisely regulated dc output. The output voltage is fully isolated from the input, allowing the output to be positive or negative polarity and with various ground connections. The 360 Watt MLW meets the most rigorous performance standards in an industry standard footprint for mobile (12VIN), and process control (24VIN).

ISO Certified

Calex Mfg. Co., Inc., 2401 Stanwell Drive, Concord, CA 94520-4841 Ph:(800) 542-3355

© Calex Manufacturing Company, Inc.

  • Home
  • Products
    • Products Overview
    • High Power DC/DC Converters ( >500 watts )
    • Mid-Range Power DC/DC Converters ( 100 – 500 watts )
    • Low Power DC/DC Converters ( <100 watts )
    • Chassis Mount Converters
    • AC-DC Power Supplies and Converters
    • Signal Conditioners
    • Low Power AC/DC Converters
  • Applications
    • Battery Management Systems
    • Electric Vehicle
    • Industrial
    • Railway
    • Robotics
  • Company
    • About Us
    • News
    • Employment Opportunities
  • Resources
    • Application Notes
    • Brochures
    • Videos
    • Legacy Product Datasheets
    • Discontinued Product Datasheets
    • Environmental Compliance and Certifications
    • Privacy
  • Contact Us
    • U.S. Reps and Distributors
    • International Reps and Distributors
    • Request a Quote
    • Request a 3D Model
    • General Inquiry
    • Technical Support
